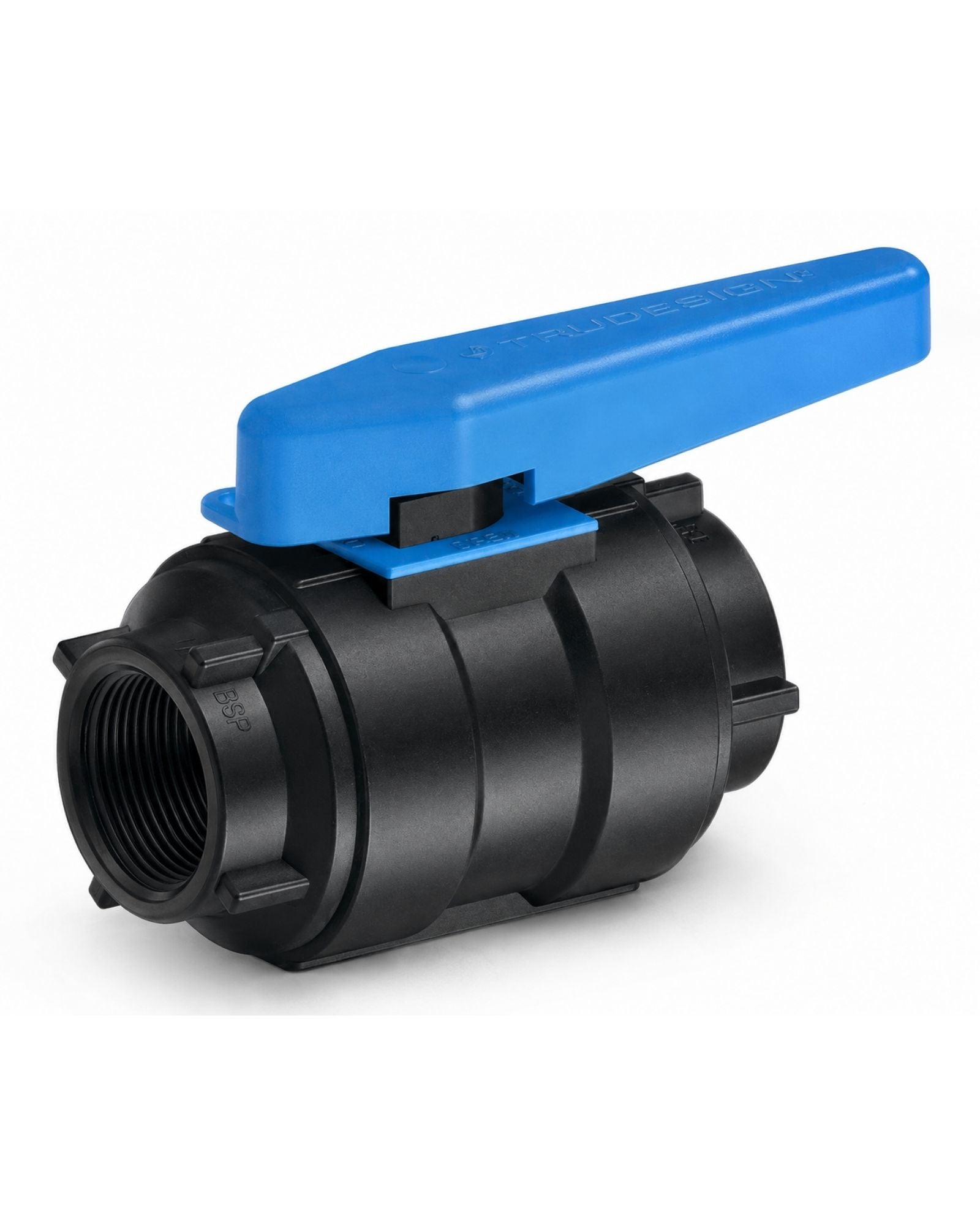

TruDesign Ball Valve [SZ:1/2]

TruDesign Ball Valve

$60 - $148 /
Subscription -

Select an option to add this to your cart.

🚚 Usually Ships within 24 hours

Available for pickup
In stock at 3/28 Thurecht Parade · Usually ready in 24 hours

In stock at 3/28 Thurecht Parade

TruDesign Ball Valve

Available for pickup

3/28 Thurecht Parade

Usually ready in 24 hours

3/28 Thurecht Parade
Scarborough QLD 4020
Australia

Designed and made in New Zealand, TruDesign Certified Ball Valves are specifically engineered for marine applications above and below the waterline. Certified to ISO 9093-2021 by the International Marine Certification Institute (IMCI, Belgium) when fitted to TruDesign Skin Fittings, and type approved by Bureau Veritas. Sizes 1" to 3" comply with ABYC H-27 load standards.

With a 6:1 weight saving over bronze and complete immunity to corrosion and electrolysis, TruDesign ball valves offer a safer, lighter, and longer-lasting alternative for all hull types. 100% leak tested before leaving the factory.


Key Features:
- ISO 9093-2021 certified (IMCI) & Bureau Veritas type approved
- ABYC H-27 compliant (1" to 3" sizes)
- 6:1 weight saving over bronze
- Glass-reinforced nylon composite — high strength, tough, lightweight
- Immune to corrosion and electrolysis — increased safety
- Electrically non-conductive — no electrical bonding required
- Suitable for all hull types: aluminium, steel, wood, FRP
- PTFE ball and sealing rings for smooth action and minimal fouling
- Lockable in closed position to comply with toilet waste outlet regulations
- Operating range: -40°C to +110°C
- Available in BSP and NPS thread forms
- Suitable for engine rooms
- T-handle or lever handle options available
- Handle identification tags available
- UV resistant — no degradation from sunlight
- 100% leak tested before leaving factory

Standard Ball Valve Range: ½", ¾", 1", 1¼", 1½", 2", 3"
Compact Ball Valve Range: ½" and ¾"
Brand: TruDesign | Made in New Zealand
