Switch Panel Bilge Alarm On/Off 12V
Switch Panel Bilge Alarm On/Off 12V

Switch Panel Bilge Alarm On/Off 12V

$55.90 /
Subscription -

Click and Collect Available

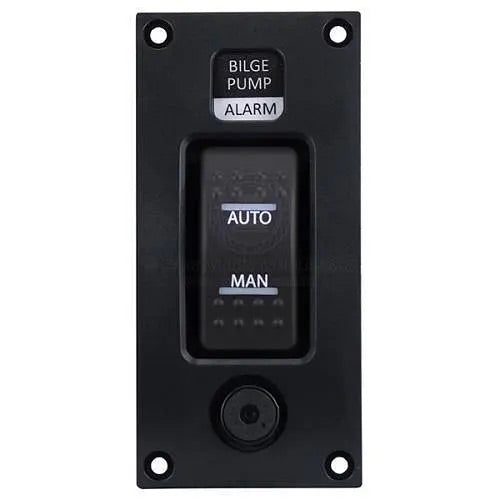

Modern bilge pump switch panel with visual and audible alarm. Three-position switch (Auto/Off/Manual) with backlit label for easy recognition. Manual mode is momentary to prevent accidental prolonged operation. Requires a second float switch for high water alarm. Includes a 20A integral blade fuse.

In auto mode, the pump activates when water reaches the lower float switch. The alarm triggers when water reaches the upper float switch. If the lower float switch fails, the pump activates when water reaches the upper float switch.

Part No.: 530771
Switch Function: On/Off/(On)
Voltage: 12V
Max Current: 20A
Material: ASA plastic
Waterproof Siren: 85dB
Panel Cut Out: 36mm x 100mm (W x H)
Face Dimensions: 54mm x 114mm
Mounting Depth: 75mm
