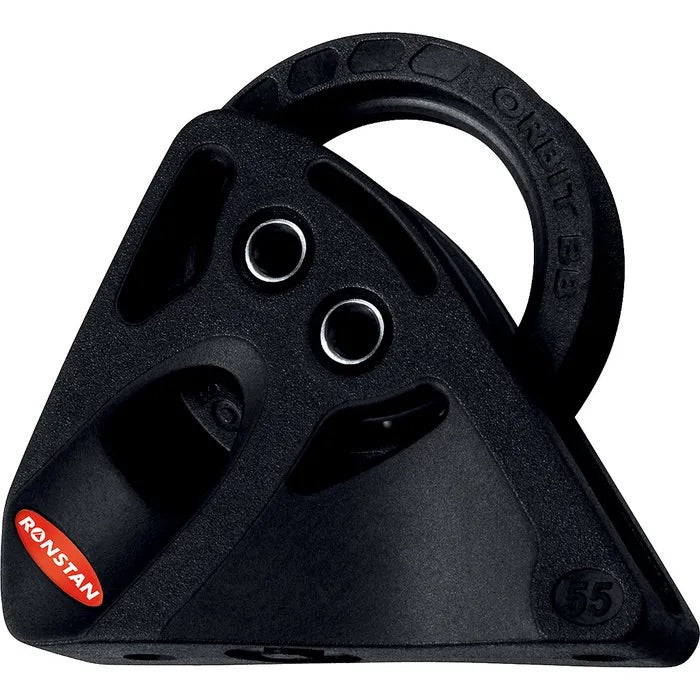

Ronstan Series 55 Orbit Block

Ronstan Series 55 Orbit Block

$59.90 /
Subscription -

🚚 Usually Ships within 24 hours

Available for pickup
In stock at 3/28 Thurecht Parade · Usually ready in 24 hours

In stock at 3/28 Thurecht Parade

Ronstan Series 55 Orbit Block

Available for pickup

3/28 Thurecht Parade

Usually ready in 24 hours

3/28 Thurecht Parade
Scarborough QLD 4020
Australia

The Ronstan Series 55 Orbit Block™ Upright Lead features a low friction 2-stage orbital ball bearing system delivering the highest working load in its class at minimum weight. The unique orbital design places bearings only in the active areas of the floating sheave, minimising mass in the inactive return race and hub. The floating sheave and bearing system is supported by a computer-modelled, stress-optimised fibre-reinforced load frame. Requires 2 x 6mm (1/4") fasteners for mounting.

Suited to mainsheet systems on dinghies, sportsboats and small keelboats to 9m, halyard, vang and backstay applications on boats to 8m, and control line applications on larger yachts.

Item Code: RF55171
Type: Upright lead
Sheave Diameter: 55mm
Max Rope Diameter: 10mm
Breaking Load: 1,000kg
Max Working Load: 500kg
Weight: 91g
Mounting: 2 x 6mm (1/4") fasteners required

Materials:
- Sheave: Carbon fibre reinforced, PTFE impregnated nylon
- Ball bearings: High compression strength carbon black acetal
- Stage 2 bearing: Carbon fibre reinforced, PTFE impregnated nylon
- Frame/cheeks: Toughened, glass fibre reinforced nylon
- Rope link: UV stabilised, multi-strand impregnated SK75 Dyneema®
