Ronstan Series 50 High Load Exit Box
Ronstan Series 50 High Load Exit Box

Ronstan Series 50 High Load Exit Box

$42.90 /
Subscription -

Click and Collect Available

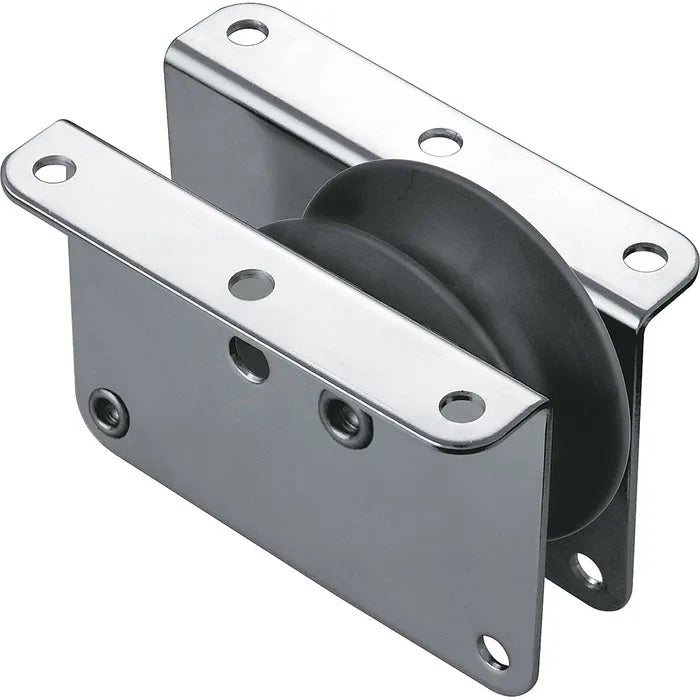

The Ronstan Series 50 High Load Exit Box features a self-lubricating 50mm Nylatron® sheave in a grade 316 stainless steel housing. Suitable for rope or wire. Ideal for applications where lines need to be led through decks, bulkheads or spars, minimising friction and chafing. External mount. Requires 6 x 5mm (3/16") fasteners.

Item Code: RF51712
Type: Exit box, external mount
Sheave Diameter: 50mm
Sheave Material: Self-lubricating Nylatron®
Max Rope Diameter: 12mm
Wire Diameter: 5mm
Fastener Diameter: 6mm (3/16")
Mounting: 6 x 5mm fasteners required
Breaking Load: 1,500kg
Max Working Load: 750kg
Weight: 145g

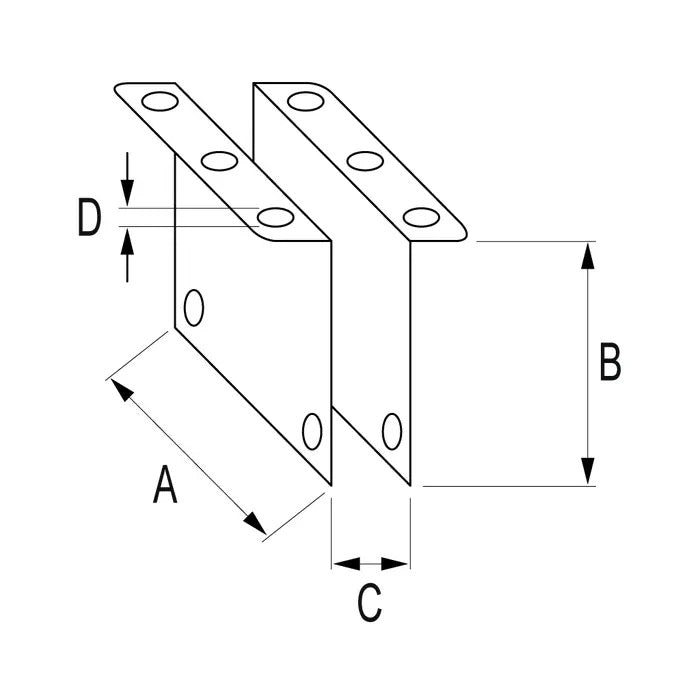

Dimension mm
A 62
B 42
C 21
D 5

Materials:
- Sheave: Self-lubricating Nylatron®
- Housing: Grade 316 stainless steel
