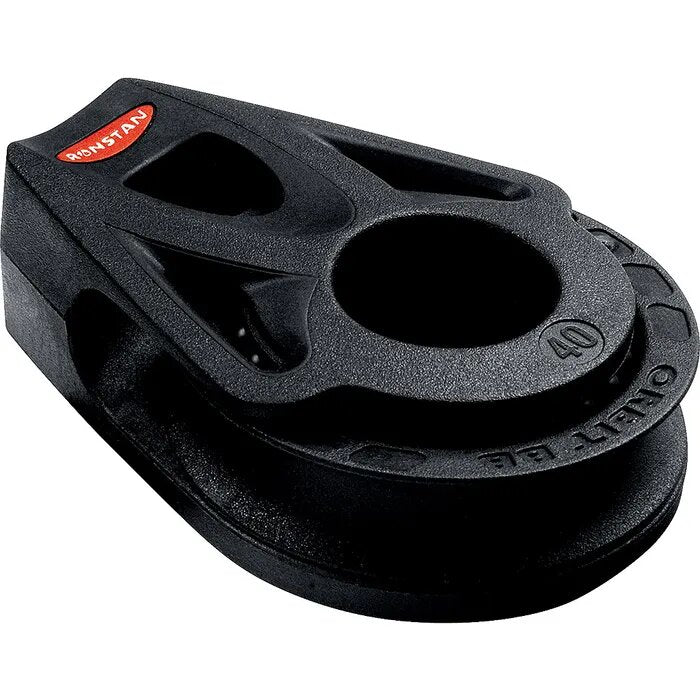

Ronstan Series 40 Ball Bearing Orbit Cheek Block

Ronstan Series 40 Ball Bearing Orbit Cheek Block

$34.90 /
Subscription -

🚚 Usually Ships within 24 hours

Available for pickup
In stock at 3/28 Thurecht Parade · Usually ready in 24 hours

In stock at 3/28 Thurecht Parade

Ronstan Series 40 Ball Bearing Orbit Cheek Block

Available for pickup

3/28 Thurecht Parade

Usually ready in 24 hours

3/28 Thurecht Parade
Scarborough QLD 4020
Australia

Ronstan Series 40 Orbit Block™ cheek/foot block with 2-stage orbital ball bearing system. Ultra lightweight at just 32g with the highest working load in its class. Low profile, compact and high performance. Requires 3 x 4mm (5/32”) countersunk head fasteners.

Ultra Lightweight
Kilogram for kilogram of working load, Ronstan Orbit Blocks™ are the world’s lightest. The unique orbital design places bearings only in the active areas of the floating sheave, minimising mass. Results in a 30% weight saving advantage over the nearest competitor.

Highest Working Load in Class
The orbital ball-bearing arrangement maximises bearing race diameter for peak load performance. The proven 2-stage bearing system features high compression grade acetal ball bearings and a secondary full-contact bearing, giving minimum friction across the full working load range. The floating sheave and bearing system is supported by a computer-modelled, stress-optimised fibre-reinforced load frame.

Applications
- Mainsheet and spinnaker sheets on dinghies to 5m (16ft)
- Halyard, vang and backstay on boats to 8m (26ft)
- Control line applications on larger yachts

Part No.: RF45151
Type: Cheek / foot
Sheave Diameter: 40mm
Max. Rope Diameter: 9mm
Breaking Load: 700kg
Max. Working Load: 325kg
Weight: 32g
Fasteners: 3 x 4mm (5/32”) countersunk (not included)

Materials
Sheave: Carbon fibre reinforced, PTFE impregnated nylon
Ball bearings: High compression strength acetal
Stage 2 bearing: Glass fibre reinforced, MoS2 impregnated nylon
Frame/cheeks: Toughened glass fibre reinforced nylon
