Ronstan D Shackle 3/8" Coined Pin Head
Ronstan D Shackle 3/8" Coined Pin Head

Ronstan D Shackle 3/8" Coined Pin Head

$22.90 /
Subscription -

🚚 Usually Ships within 24 hours

Available for pickup
In stock at 3/28 Thurecht Parade · Usually ready in 24 hours

In stock at 3/28 Thurecht Parade

Ronstan D Shackle 3/8" Coined Pin Head

Available for pickup

3/28 Thurecht Parade

Usually ready in 24 hours

3/28 Thurecht Parade
Scarborough QLD 4020
Australia

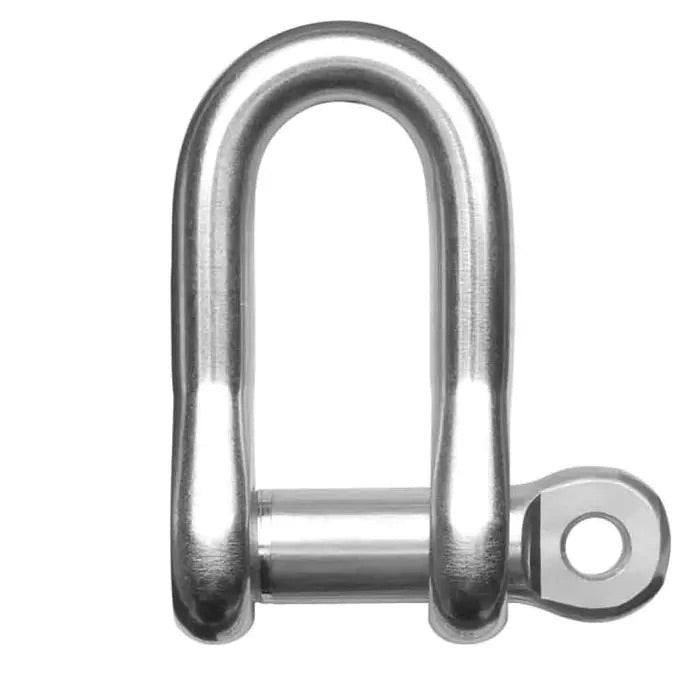

The Ronstan RF619 is a premium Grade 316 stainless steel D shackle with a 3/8" (9.5mm) diameter coined pin head and seizing wire hole. High strength to weight ratio with a point load breaking load of 3600kg and uniformly distributed breaking load of 5400kg.


Material: Grade 316 stainless steel (body and pins)
Pin Diameter: 3/8" (9.5mm)
Shackle Pin Product No.: RF35
Point Load Breaking Load (PL BL): 3600kg
Uniformly Distributed Breaking Load (UDL BL): 5400kg
Weight: 80g

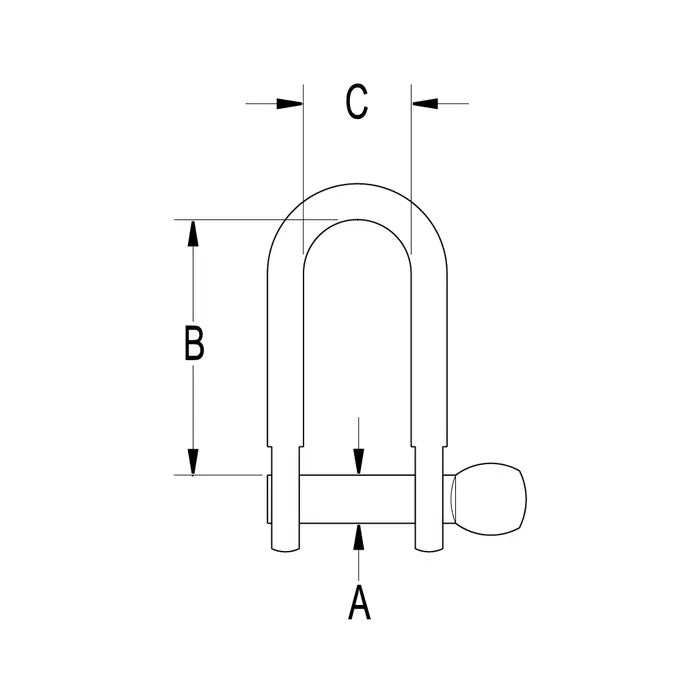

Dimensions
A: 9.5mm | B: 38mm | C: 17mm

PL BL — Point Load breaking load applied at the centre or one side of the shackle pin. UDL BL — Uniformly Distributed Load breaking load applied across the full span of the shackle pin. Shackle pins drilled for seizing wire.

Item Code. RF619
