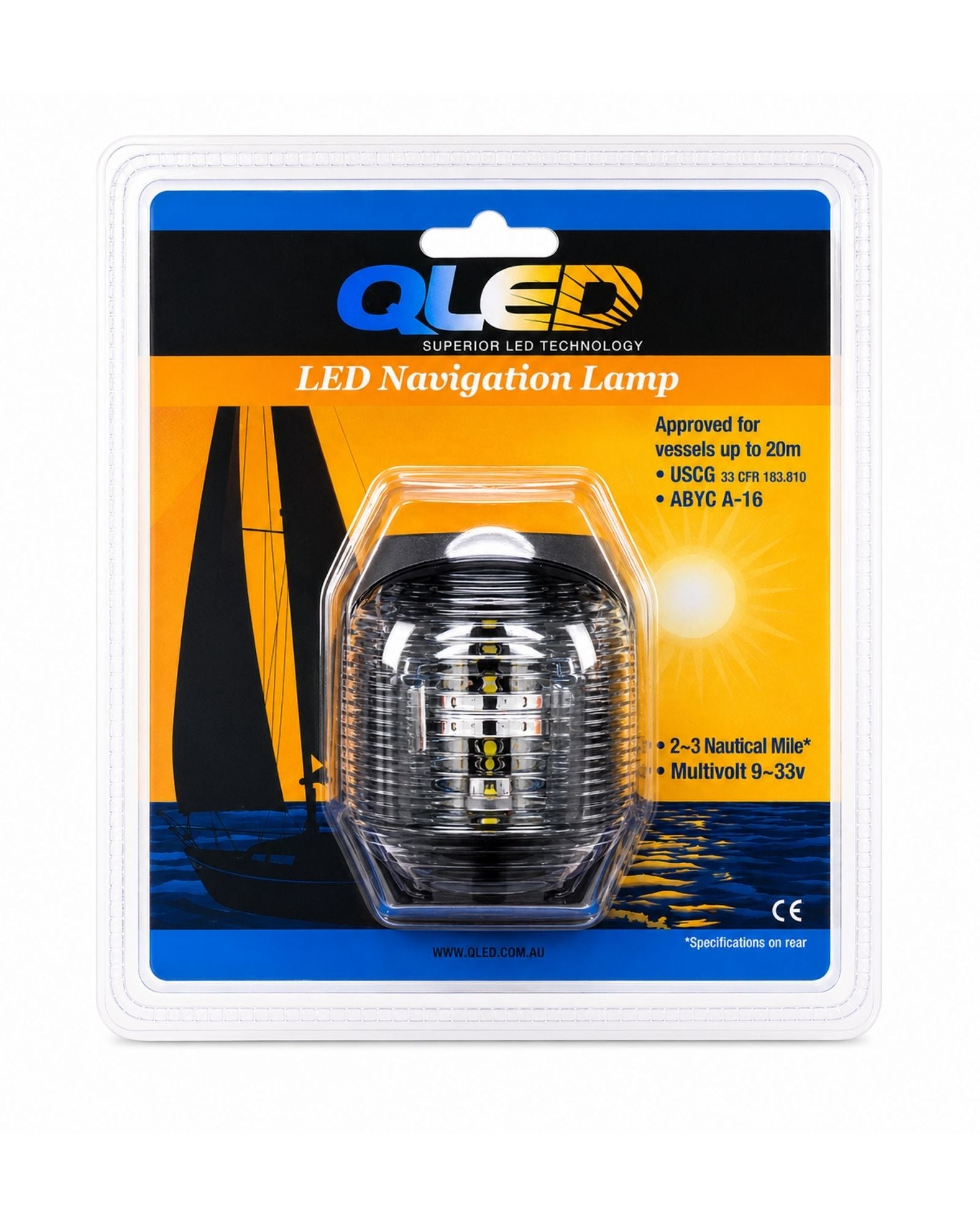

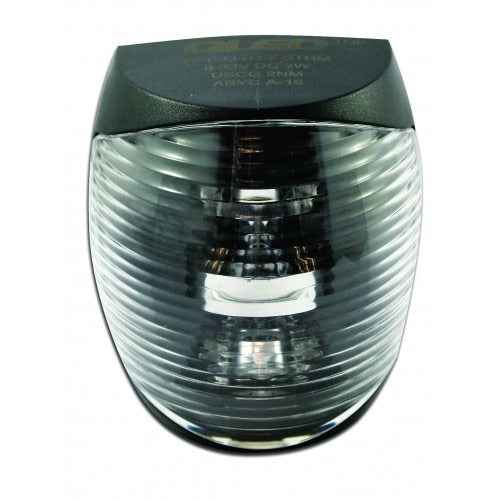

QLED Navigation Lamp Mast
QLED Navigation Lamp Mast

QLED Navigation Lamp Mast

$102.90 /
Subscription -

🚚 Usually Ships within 24 hours

Available for pickup
In stock at 3/28 Thurecht Parade · Usually ready in 24 hours

In stock at 3/28 Thurecht Parade

QLED Navigation Lamp Mast

Available for pickup

3/28 Thurecht Parade

Usually ready in 24 hours

3/28 Thurecht Parade
Scarborough QLD 4020
Australia

QLED's LED Steaming/Masthead Navigation Light is part of a comprehensive range of LED navigation lamps approved for vessels up to 20m in length. This lightweight, modern design delivers up to 90% power savings over traditional bulb units, with zero maintenance thanks to the elimination of bulb filaments. Far smaller and lighter than comparable 20m traditional units, it simplifies installation without compromising performance.

Minimum 3NM visibility is maintained even in low voltage situations, and the light is sealed to IP67 for reliable operation in harsh marine conditions.


Key Features:
- Approved for vessels 20m or less (USCG, ABYC, CE certified)
- Up to 90% power savings over traditional bulb lights
- Zero maintenance — no bulb filaments to break
- Minimum 3NM visibility to international standards
- IP67 sealed — shock and vibration proof
- Multi-volt: 9–33VDC
- Operating temperature: -20°C to +60°C
- Supplied with 2m tinned copper cable
- 3-year Australian warranty (1-year limited in commercial operations)

Steaming/Masthead Light Specifications:
- Colour: White
- Arc: 225°
- Visibility: 3NM minimum
- Mounting: Vertical
- Current draw: 0.18A @ 12V
- Lamp weight: 150g approx.
- Cable weight: 100g approx.
- Dimensions: 88H x 78W x 50D mm

Part No.: 77-S33-B225MHM
