BEP Splash Proof 4 Switch Fuse Panel
BEP Splash Proof 4 Switch Fuse Panel

BEP Splash Proof 4 Switch Fuse Panel

🚚 Usually Ships within 24 hours

Available for pickup
In stock at 3/28 Thurecht Parade · Usually ready in 24 hours

In stock at 3/28 Thurecht Parade

BEP Splash Proof 4 Switch Fuse Panel

Available for pickup

3/28 Thurecht Parade

Usually ready in 24 hours

3/28 Thurecht Parade
Scarborough QLD 4020
Australia

+61738800111

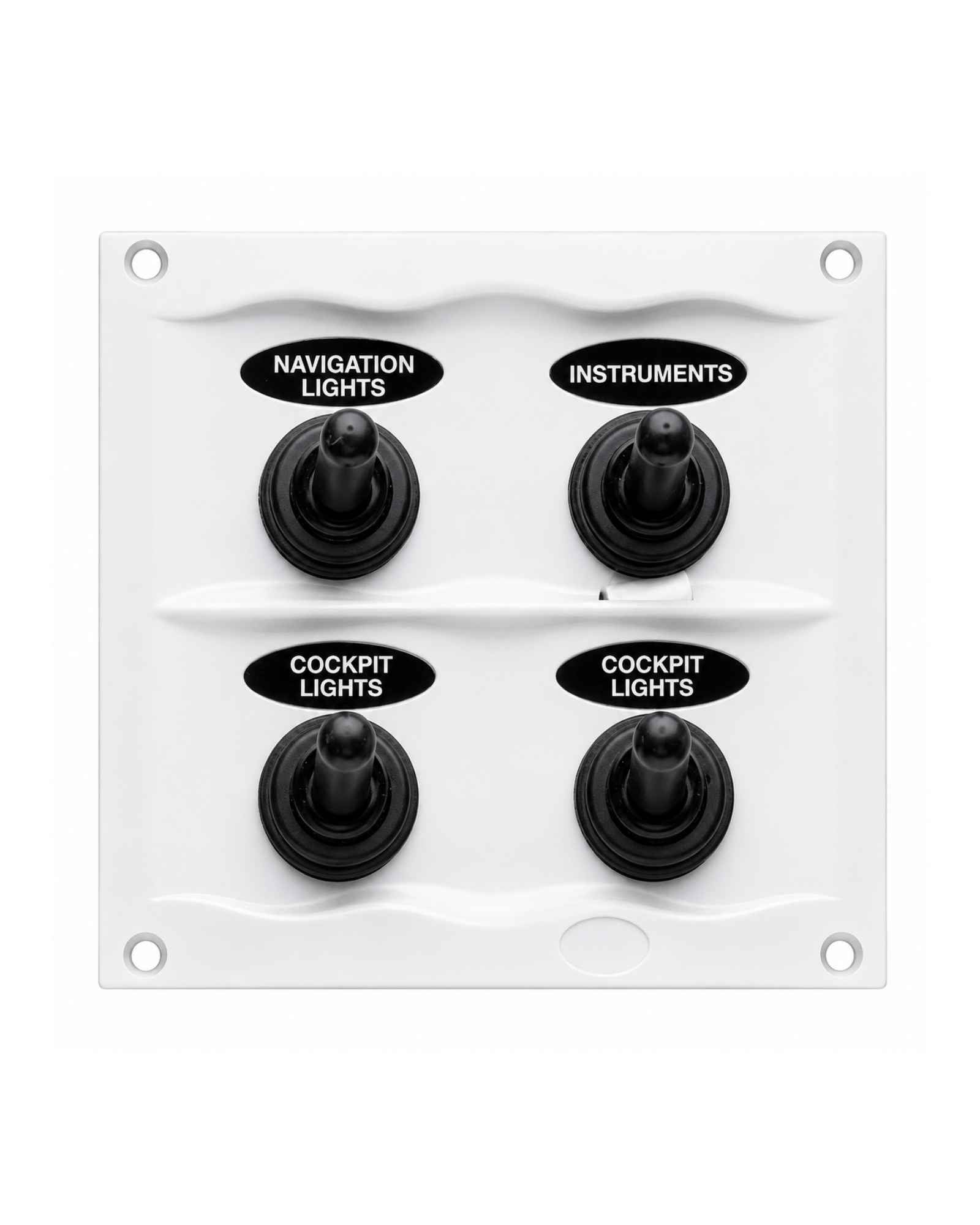

The BEP splash-proof four-gang switch and fuse panel provides a compact, organised way to control and protect marine electrical circuits. Its white injection-moulded plastic fascia is fitted with high-quality two-position toggle switches, each protected by a neoprene rubber boot for IP56 splash-proof protection from the front face. Each pair of switches is connected to a behind-panel AF-type blade fuse, and the panel includes a 28-piece label set for clear circuit identification.

Panel Type: Four-gang switch and fuse panel
Fascia Colour: White
Protection: IP56 splash-proof protection from the front face
Switches: Two-position toggle switches with neoprene rubber boots
Switch Rating: 20A
Fuse Protection: One behind-panel AF-type blade fuse per pair of switches
Labels: Supplied with 28-piece label set
Overall Size: 107mm x 95mm
Cutout Size: 87mm x 45mm
Intrusion: 75mm
Mounting Screws: 3mm countersunk
Part No.: 113241
