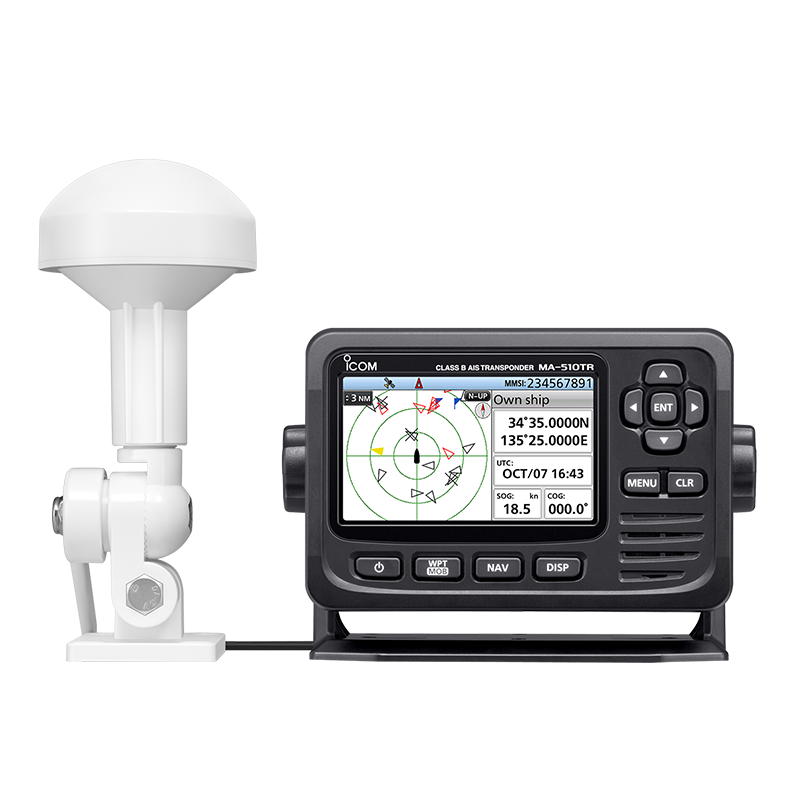

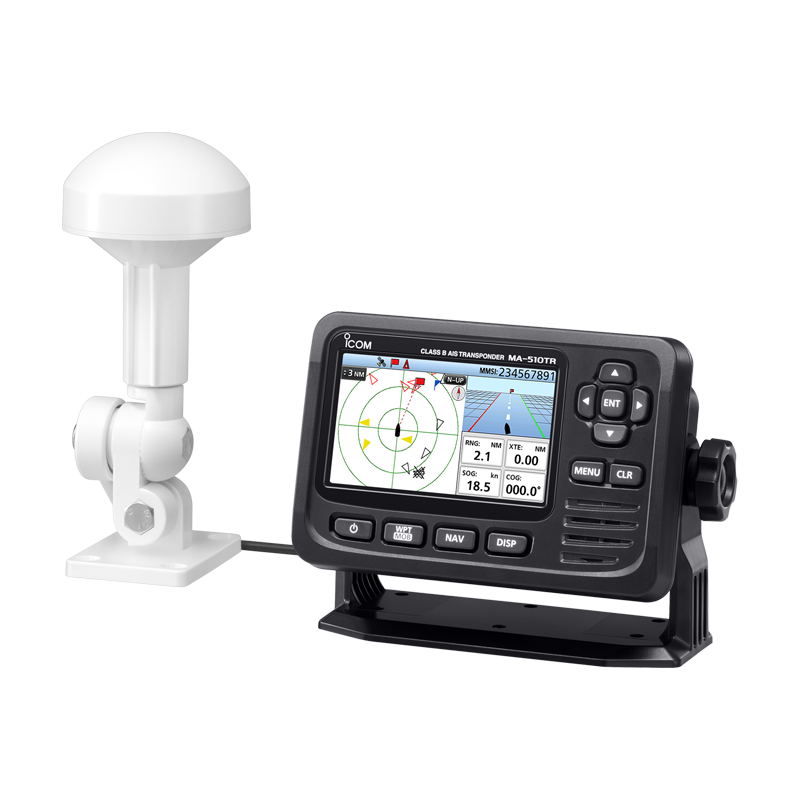

The Icom MA-510TR is a Class B AIS transponder that simultaneously transmits your vessel's static and dynamic information while receiving AIS signals from other vessels and base stations. Receives both Class A and Class B AIS signals. Ideal for detecting small AIS-equipped boats and buoys that may be difficult to detect by radar alone.
Key Features
4.3" Colour TFT Display

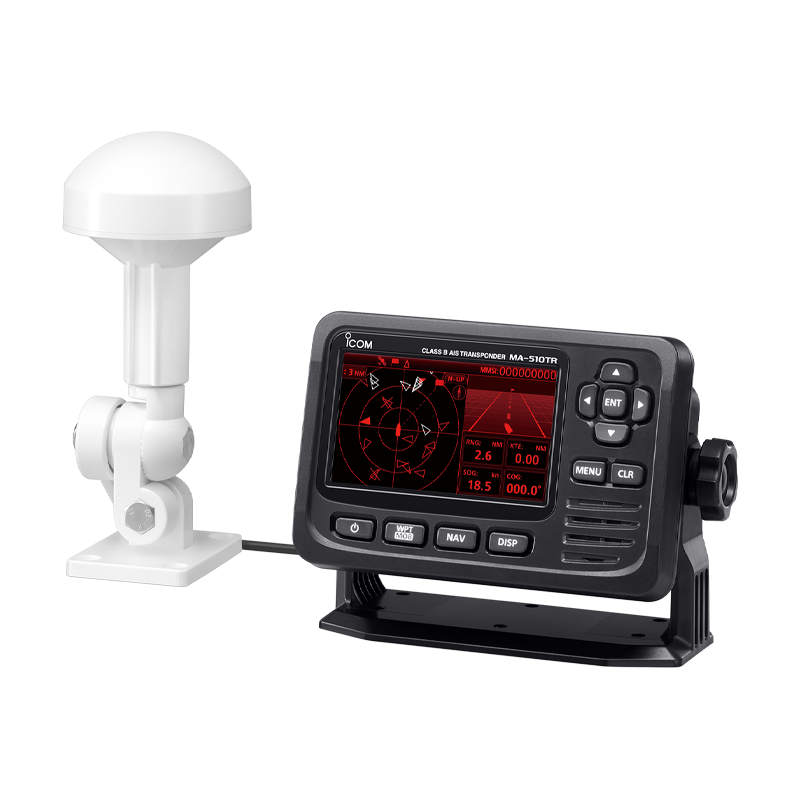

High resolution, wide-viewing display shows your vessel and surrounding AIS targets clearly. Dangerous vessels highlighted in red, friends in yellow. Day and night display modes for all-conditions readability.
AIS Target List & Details
View all detected AIS targets, a danger list (vessels within 6NM CPA and 60 min TCPA), and a friends list. Select any target for full detail view.
Navigation Function
Guides you to a selected waypoint or AIS target. Store up to 100 waypoints. Simply select a waypoint or target on screen to activate navigation.
MOB (Man Overboard)
Hold the [WPT/MOB] button to instantly mark your current position and activate MOB navigation to the event location.
Individual DSC Call
Transmit an individual DSC call by selecting an AIS target and voice channel. Requires a compatible Icom VHF radio and accessory cable (sold separately).
USB Connectivity
AIS data output via USB connector on rear panel. Requires third-party application and connection cable.
Supplied GPS Antenna
Integrated GPS receiver with SBAS function. Includes GPS antenna with 10m (32.8ft) cable.
NMEA 2000™ & NMEA 0183 Connectivity
Plug-and-play NMEA 2000™ network connection to external plotters, radar and VHF radio. NMEA 0183/-HS connectivity also supported.
Collision Alarm
Audible and visual alarm when a vessel enters CPA/TCPA range. Can be connected to external audio equipment for remote alerting.
Silent Mode
Temporarily disables AIS transmission while continuing to receive other vessels’ AIS data. Useful for concealing fishing spots.
Additional Features
- 12V and 24V compatible
- Multi-lingual interface: English, French, Indonesian, Spanish, Vietnamese
- Anchor watch alarm
- IPX7 waterproof (1m depth, 30 min; connectors excluded)
Specifications
Operating Frequencies: 161.500–162.025 MHz
Type of Emission: 16K0GXW (GMSK)
Antenna Impedance: 50Ω nominal
Operating Temp: −20°C to +60°C
Power Supply: 12V or 24V DC (9.6–31.2V), negative ground
Current Drain @ 12V: TX 1.5A / RX 0.7A
Dimensions: 166.2mm W x 110.2mm H x 92.5mm D
Weight: 700g
Transmitter
Output Power: 2W
Modulation: 16K0GXW (GMSK)
Conducted Spurious Emission: <−36 dBm (9 kHz–1 GHz) / <−30 dBm (1–4 GHz)
Receiver (AIS)
Sensitivity: <−110 dBm
Adjacent Channel Selectivity: >−31 dBm
Spurious Response: >−31 dBm
