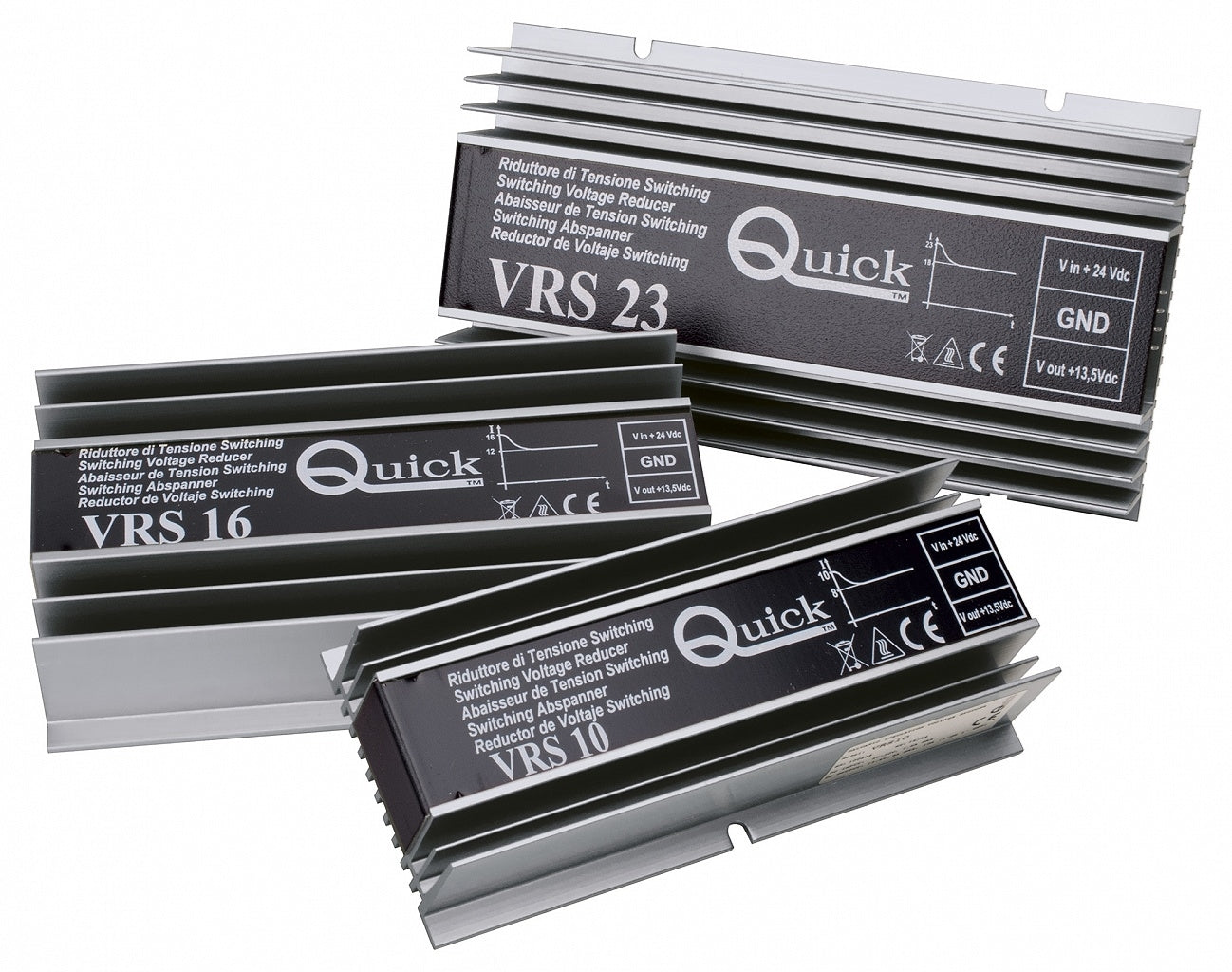

Quick Voltage Reducer VRS23 24V-12V

Quick Voltage Reducer VRS23 24V-12V

$189 /
Subscription -

🚚 Usually Ships within 24 hours

Available for pickup
In stock at 3/28 Thurecht Parade · Usually ready in 24 hours

In stock at 3/28 Thurecht Parade

Quick Voltage Reducer VRS23 24V-12V

Available for pickup

3/28 Thurecht Parade

Usually ready in 24 hours

3/28 Thurecht Parade
Scarborough QLD 4020
Australia

The Quick VRS23 is a switching voltage reducer designed to guarantee electrical separation between 24V and 12V electrical systems. Key advantages include full electrical insulation between input and output and ultra-low residual output ripple (under 30mV RMS), ensuring clean, stable 12V power for sensitive electronics. Built-in protections against short circuits, output overvoltage, and reverse output polarity provide additional peace of mind.

Aluminium case with natural cooling. Sold complete with voltage reducer and product sheet.


Specifications:
- Model: VRS23
- Supply Voltage: 20–30Vdc
- Rated Output Voltage: 13.5Vdc ± 0.5Vdc
- Maximum Output Current: 18A
- Maximum Output Load: 23A
- Maximum Absorption: 17.8A
- Output Voltage Stability: 1%
- Residual Ripple: 30mV max RMS
- Cooling: Natural
- Case Material: Aluminium
- Dimensions: 200mm x 116mm x 41mm (W x H x D)
- Weight: 780g

Protections: Short circuit, output overvoltage, reverse output polarity
Brand: Quick
